| Conductor | Rubber Insulation | Rubber Sheath | Approx. Overall Dia | Conductor Resistance | |
|---|---|---|---|---|---|
| Nominal Size in | Nos. & Dia of Wire | Nominal Thickness | Nominal Thickness | ||
| sq.mm | Nos./ mm | mm | mm | mm | ohms/km |
| 1.50 | 22/0.30 | 0.80 | 1.60 | 10.20 | 12.10 |
| 2.50 | 36/0.30 | 0.90 | 1.80 | 11.90 | 7.41 |
| 4.00 | 56/0.30 | 1.00 | 1.00 | 13.50 | 4.95 |
| 6.00 | 84/0.30 | 1.00 | 2.10 | 15.60 | 3.30 |
| 10.00 | 140/0.30 | 1.20 | 3.30 | 20.60 | 1.91 |
| 16.00 | 224/0.30 | 1.20 | 3.50 | 24.20 | 1.21 |
| 25.00 | 354/0.30 | 1.40 | 3.80 | 29.10 | 0.780 |
| Conductor | Rubber Insulation | Rubber Sheath | Approx. Overall Dia | Conductor Resistance | |
|---|---|---|---|---|---|
| Nominal Size in | Nos. & Dia of Wire | Nominal Thickness | Nominal Thickness | ||
| sq.mm | Nos./ mm | mm | mm | mm | ohms/km |
| 1.50 | 22/0.30 | 0.80 | 1.70 | 11.20 | 12.10 |
| 2.50 | 36/0.30 | 0.90 | 1.90 | 13.00 | 7.41 |
| 4.00 | 56/0.30 | 1.00 | 2.00 | 14.90 | 4.95 |
| 6.00 | 84/0.30 | 1.00 | 2.30 | 17.50 | 3.30 |
| 10.00 | 140/0.30 | 1.20 | 3.40 | 22.60 | 1.91 |
| 16.00 | 224/0.30 | 1.20 | 3.60 | 27.10 | 1.21 |
| 25.00 | 354/0.30 | 1.40 | 4.10 | 32.70 | 0.780 |
The number of wires and diameter mentioned in the table are approximate and nominal, however they shall meet the requirements of conductor resistance as per standards.
In view of continuous improvements in our design and process, the information, Dimensions and specifications given herein are subject to change without notice.
For Equipment used in the following applications.
Irrigation
Drinking water-supply
Industries
Mine De-watering
Offshore Drilling Rigs
Sewage Treatment Plant
Sea Water Handling
Fire Fighting
Designed for heavy duty use.
Excellent resistant to oils, acids chemicals, ozone & solvents.
Excellent Weather Resistant.
Excellent Electrical Properties.
Temperature range - 40 C to +90 C

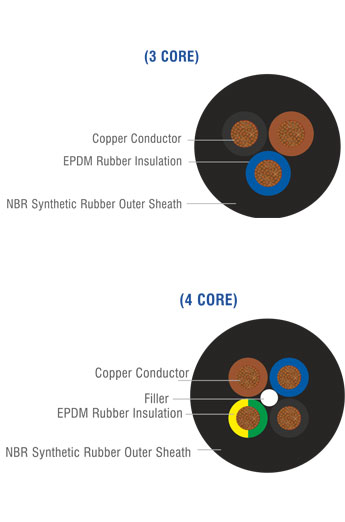

Conductor : Finely stranded bare flexible copper conductor.
Insulation : EPDM / NBR Rubber
Sheath : NBR Synthetic Rubber
Core Colours : 3 Core : Brown, Blue, Black
4 Core : Brown, Blue, Black, Yellow / Green
