| Conductor | PVC Insulation | PVC Sheath | Conductor Resistance 0 at 20 C (Max) ohms/km | Current Rating at 0 40 C Amps. | ||||
|---|---|---|---|---|---|---|---|---|
| Nominal Size in | Nos. & Dia of Wire | Nominal Thickness | Nominal Core Dia | Nominal Thickness | Approx. Overall Dimensions | |||
| sq.mm | Nos./ mm | mm | mm | mm | Height mm | Width mm | ||
| 1.50 | 22/0.30 | 0.80 | 3.25 | 1.15 | 6.20 | 12.80 | 12.10 | 23 |
| 2.50 | 36/0.30 | 0.90 | 3.80 | 1.15 | 6.40 | 14.60 | 7.41 | 30 |
| 4.00 | 56/0.30 | 1.00 | 4.50 | 1.15 | 7.40 | 16.80 | 4.95 | 34 |
| 6.00 | 84/0.30 | 1.00 | 5.25 | 1.15 | 8.00 | 18.70 | 3.30 | 43 |
| 10.00 | 140/0.30 | 1.00 | 6.50 | 1.40 | 9.90 | 23.70 | 1.91 | 61 |
| 16.00 | 224/0.30 | 1.00 | 8.00 | 1.40 | 11.80 | 28.00 | 1.21 | 81 |
| 25.00 | 350/0.30 | 1.20 | 10.10 | 2.00 | 14.70 | 35.50 | 0.780 | 108 |
| Conductor | PVC Insulation | PVC Sheath | Conductor Resistance 0 at 20 C (Max) ohms/km | Current Rating at 0 40 C Amps. | ||||
|---|---|---|---|---|---|---|---|---|
| Nominal Size in | Nos. & Dia of Wire | Nominal Thickness | Nominal Core Dia | Nominal Thickness | Approx. Overall Dimensions | |||
| sq.mm | Nos./ mm | mm | mm | mm | Height mm | Width mm | ||
| 1.50 | 22/0.30 | 0.80 | 3.25 | 1.30 | 6.20 | 15.80 | 12.10 | 23 |
| 2.50 | 36/0.30 | 0.90 | 3.80 | 1.30 | 6.40 | 18.00 | 7.41 | 30 |
| 4.00 | 56/0.30 | 1.00 | 4.50 | 1.45 | 7.40 | 21.00 | 4.95 | 34 |
| 6.00 | 84/0.30 | 1.00 | 5.25 | 1.50 | 8.00 | 24.50 | 3.30 | 43 |
| 10.00 | 140/0.30 | 1.00 | 6.50 | 1.80 | 9.90 | 29.70 | 1.91 | 61 |
| 16.00 | 224/0.30 | 1.00 | 8.00 | 1.95 | 11.80 | 36.00 | 1.21 | 81 |
| 25.00 | 350/0.30 | 1.20 | 10.10 | 2.00 | 14.70 | 45.50 | 0.780 | 108 |
The number of wires and diameter mentioned in the table are approximate and nominal, however they shall meet the requirements of conductor resistance as per standards.
In view of continuous improvements in our design and process, the information, Dimensions and specifications given herein are subject to change without notice.
For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.
Meets the requirement of CENELEC HD 22.1.S2, DIN VDE 0282 PART 810, IEC 245, Cel 20-19 & BS
6007, BS 6899.
Designed for heavy duty use.
Excellent resistant to oils, acids chemicals, ozone & solvents.
Excellent Weather Resistant.
Excellent Electrical Properties.
Temperature range - 40 C to +90 C

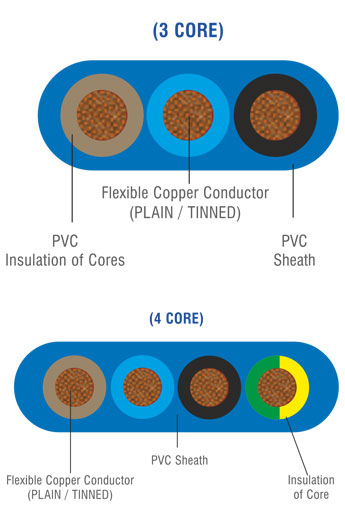

Conductor : Finely stranded bare flexible copper conductor.
Insulation : EPR rubber
Sheath : Black / Blue heavy duty EPR.
Core Colours : 3 Core : Red, Yellow, Blue OR Brown, Blue, Black
4 Core : Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line
